Performance Advantage
LFP Cell
-
High Energy Density
High energy density, mass production cell energy density is over 210Wh/kg, at the leading level in the industry;
-
Long Life
Ultra-long life cycle, ≥ 3000 cycle life, system life can reach more than 8 years, 1 million kilometers mileage;
-
Ultra High Security
High safety, the whole series pass international safety performance requirements, better structural design, better stable performance;
-
Intelligent Temperature Control Technology
Wide operating temperature range, can meet the normal operation under -30~60 °C temperature range, temperature adaptation area is wide.
NCM Cell
-
High Energy Density
High energy density, mass production cell energy density is over 210Wh/kg, at the leading level in the industry;
-
Long Life
Ultra-long life cycle, ≥ 3000 cycle life, system life can reach more than 8 years, 1 million kilometers mileage;
-
Ultra High Security
High safety, the whole series pass international safety performance requirements, better structural design, better stable performance;
-
Intelligent Temperature Control Technology
Wide operating temperature range, can meet the normal operation under -30~60 °C temperature range, temperature adaptation area is wide.
-
SFC Capabillity
Support fast charging: meet diversified travel needs.
Battery Pack Products and
Technical Advantages

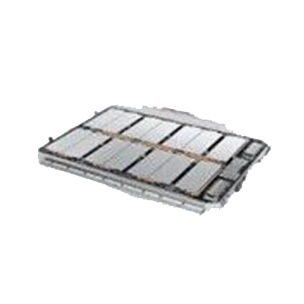

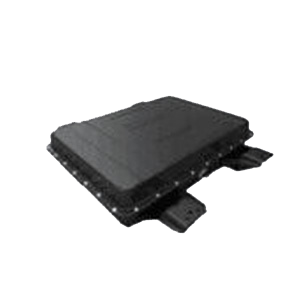

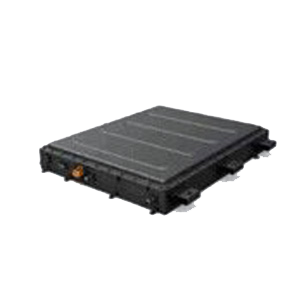

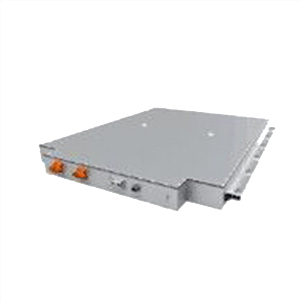

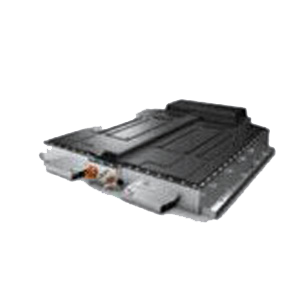

Battery packs for passenger vehicles
Battery packs for passenger vehicles
Core technical advantages
-
Excellent safety performance
Active and passive safety protection technologies to achieve zero heat diffusion
-
Intelligent monitoring
24/7 operation monitoring and intelligent diagnosis to realize battery full-life-cycle management
-
Long service life
A service life of 8 years, equivalent to a total of 300,000-600,000 km
-
High energy density
Highly integrated system to realize ≥200Wh/kg pack level energy density
-
Long mileage
800 km+ with the NCM system and 500 km+ with the LFP system 1000 km+ with the semi-solid NCM and LMFP system
-
All-weather adaptability
Self-heating and active cooling technologies allow the battery system to adapt to an ambient temperature of -30—60℃
-
High charge rate
Average charge rate ranging from 2C to 4C
-
Platforms

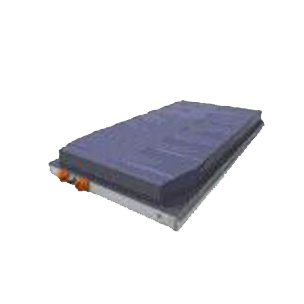

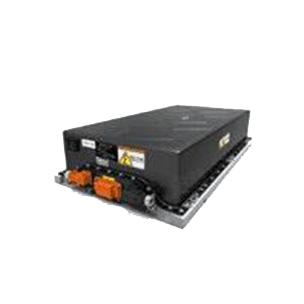

Standard battery packs for special vehicles, buses and hybrid vehicles, general BDUs and highly universal modules
LFP/LMFP
NCM
| LMFP22290120-130Ah（M290） | LMFP22290120-130Ah（M290） | |
|---|---|---|
| Parameter/LFP Cell |  |
|
| Deminsion | 22mm（T） 290mm（W） 120mm（H） | 22mm（T） 290mm（W） 120mm（H） |
| Weight | 1750±20g | 1750±20g |
| Nominal Capacity /Voltage |
103 Ah/3.65 V | 114 Ah/3.69 V |
| 25℃ Cycle life | 3000cycles | 3000cycles |
| 45℃ Cycle life | 1200cycles | 1200cycles |
| Safety performance | ≤22min（20%~80% SOC） | ≤22min（20%~80% SOC） |
| SFC capability | Pass GB38031-2020 | Pass GB38031-2020 |
| Storage/charge temperature |
-30 ~ 65 °C / -20 ~ 55 °C | -30 ~ 65 °C / -20 ~ 55 °C |
| Capacity rentention at low temperature |
-20°C,≥80% | -20°C,≥80% |
| Service Life | 10 Year | 10 Year |
| C-rate performance | Continuous Charge/Discharge 2.5C/3C Pulse Charge/Discharge3C/5C |
Continuous Charge/Discharge 2.5C/3C Pulse Charge/Discharge3C/5C |
| LMFP21590120-210Ah（M600） | LFP30300107-122Ah（M300） | |
|---|---|---|
| Parameter/LFP Cell |  |
 |
| Deminsion | 21.3mm（T） 590mm（W） 120mm（H） | 30.7±0.3mm（T） 300±0.5mm（W） 103±0.5mm（H） |
| Weight | 3330±34g | 2100±50g |
| Nominal Capacity /Voltage |
210 Ah/3.63 V | 122Ah/3.63 V |
| 25℃ Cycle life | 3000cycles | 2500cycles |
| 45℃ Cycle life | 1500cycles | 1200cycles |
| Safety performance | 20min（10%~80% SOC） | 11min（10%~80% SOC） |
| SFC capability | Pass GB38031-2020 | Pass GB38031-2020 |
| Storage/charge temperature |
-30 ~ 60 °C / -20 ~ 55 °C | -30 ~ 65 °C / -20 ~ 55 °C |
| Capacity rentention at low temperature |
-20℃，≥80% | -20℃，≥80% |
| Service Life | 10 Year | 10 Year |
| C-rate performance | Continuous Charge/Discharge 2.5C/3C Pulse Charge/Discharge3C/5C |
Continuous Charge/Discharge 2C/3C Pulse Charge/Discharge3C/5C |
| INR46950S-33Ah | INR46120S-43Ah | |
|---|---|---|
| Parameter/LFP Cell |  |
 |
| Deminsion | 46mm（D) 95mm（H） | 46mm（D) 120mm（H） |
| Weight | 434 g | 550 g |
| Nominal Capacity /Voltage |
33 Ah/3.68 V | 43 Ah/3.68 V |
| 25℃ Cycle life | ≥1500cycle（@80%SOC） | ≥1500cycle（@80%SOC） |
| Safety performance | Pass GB/UN38.3 | Pass GB/UN38.3 |
| SFC capability | 18min（10%~80% ） | 20min（10%~80%） |
| PACK no Thermal Propagation |
No Thermal Propagation | No Thermal Propagation |
|
Storage / charge |
-30~60℃ /-20~55℃ | -30~60℃ /-20~55℃ |
| Capacity rentention at low temperature |
-30℃，＞85% | -30℃，＞85% |
| Service Life | 8years/160,000 kilometers | 8years/160,000 kilometers |
| C-rate performance | Continuous Charge/Discharge 3C/5C Pulse Charge/Discharge6C/9C |
Continuous Charge/Discharge 3C/5C Pulse Charge/Discharge6C/9C |
| INP25256106-116Ah | |
|---|---|
| Parameter/LFP Cell |  |
| Deminsion | 24.8mm（T） 256mm（W） 106mm（H） |
| Weight | 1612±15g |
| Nominal Capacity /Voltage |
115.8Ah / 3.65V |
| 25℃ Cycle life | ≥2000cycle |
| 45℃ Cycle life | ≥1000cycle |
| Safety performance |
Psaa PV8450/UN38.3
|
| SFC capability | 25min(10％~80%SOC) |
|
Storage / charge |
-40~70℃ /-30~60℃ |
| -10℃，≥85% | |
| Service Life | 8years/160,000 kilometers |
| C-rate performance | Continuous Charge/Discharge 2C/3C |
